Plumbing is one of the most essential systems in any home. It ensures that water flows where it needs to and that waste is safely removed. But have you ever stopped to think about how this system works—especially the parts of it that you don’t see? That’s where the DWV system comes in.
Understanding the DWV system is not just for plumbers. Homeowners can greatly benefit from understanding how this system works. It can help you identify problems early, maintain your plumbing system effectively, and ensure your home remains safe and functional.
What Does DWV Stand For in House Plumbing?
The term DWV stands for Drain, Waste, and Vent. It refers to the system of pipes in your home that handles the removal of wastewater and the ventilation of sewer gases. Let’s break this down further:
Drain
The “drain” part of the DWV system is responsible for carrying wastewater out of your home. Whenever you use a sink, shower, or toilet, the water flows into drainpipes that direct it toward your home’s main drain line.
Waste
“Waste” pipes handle solid and liquid waste from your home. These pipes connect directly to fixtures, such as toilets, sinks, and bathtubs, directing waste toward the central drainpipe.
Vent
The “vent” component allows air to flow freely through the plumbing system. This prevents a vacuum from forming in the pipes, which could otherwise lead to clogs or slow drainage. Vent pipes also release harmful sewer gases safely outside your home, usually through roof vents.
Why is DWV Important?
The DWV system is critical to your home’s plumbing because it ensures that wastewater is removed efficiently and that harmful gases don’t enter your home. Without a functioning DWV system, you could face issues like backups, foul odors, and even health risks from sewer gas exposure.
How the DWV System Works in a House
The DWV system operates on a simple yet effective principle: gravity flow. Here’s how it manages sewage, greywater, and ventilation in your home:
Gravity and Pipe Slope
The DWV system relies on gravity to move wastewater from your fixtures to the sewer or septic system. To achieve this, the pipes are installed at a slight downward slope. This ensures that water and waste flow smoothly without obstruction.
You may also read (does your homes plumbing system require electricity).
Traps and Odor Prevention

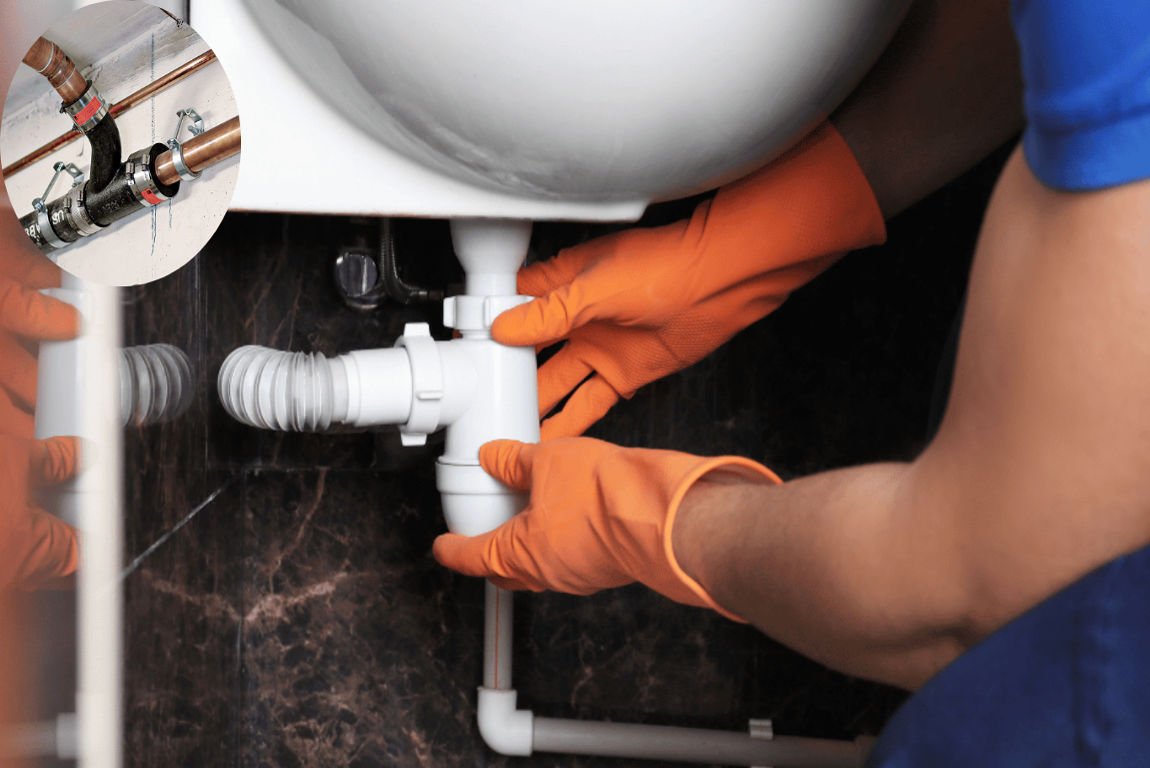

One of the key features of the DWV system is the use of traps—those U-shaped pipes you’ve probably noticed under your sinks. Traps hold a small amount of water to block sewer gases from coming back into your home while still allowing wastewater to pass through.
The Role of Venting
Venting is essential for maintaining neutral air pressure in the plumbing system. Without vent pipes, a vacuum could form, leading to slow drainage or clogged pipes. Vent pipes also allow harmful gases to escape safely from the house.
DWV vs. Potable Water Systems
It’s important to note that the DWV system is entirely separate from your home’s potable (drinkable) water system. While potable water systems are pressurized to deliver water to your faucets and fixtures, the DWV system uses gravity to remove waste and maintain air circulation.

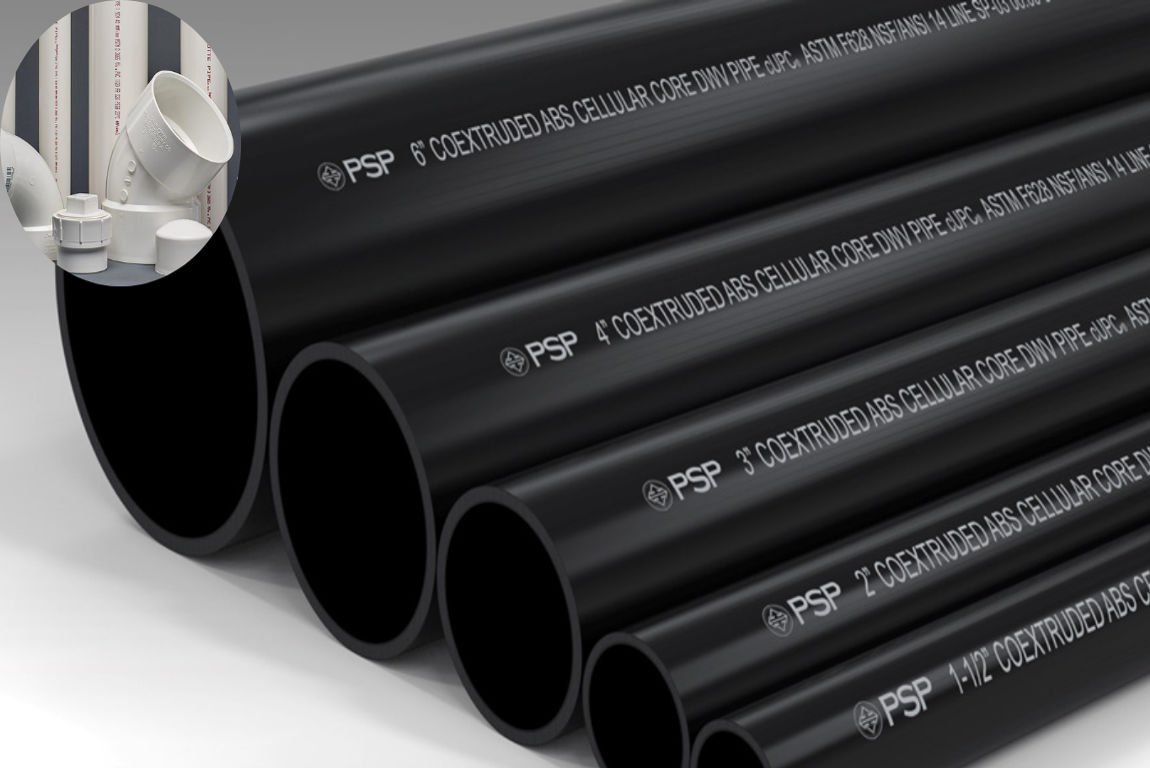

Components of the DWV System Explained
The DWV system is made up of several key components, each playing a specific role in ensuring your plumbing system runs smoothly:
Main Drain Pipe (Soil Stack)
The main drain pipe, also known as the soil stack, is the central vertical pipe in the DWV system. It collects wastewater from all the branch lines and directs it downward toward the sewer or septic system. This pipe is usually the largest in diameter.
Waste Pipes
Waste pipes are smaller horizontal or vertical pipes that connect individual fixtures—like sinks, showers, and toilets—to the main drain pipe. These pipes carry both liquid and solid waste for disposal.
Vent Pipes
Vent pipes are responsible for maintaining airflow within the plumbing system. These pipes extend upward and usually exit through the roof. They prevent vacuum pressure from disrupting the flow of wastewater and allow sewer gases to escape safely.
Table: Components of DWV System and Their Roles
ComponentDescriptionRole
Main Drain Pipe Vertical pipe collecting waste from all branch lines Directs waste to sewer/septic.
Waste Pipes Horizontal/vertical pipes connecting fixtures Carries waste from fixtures
Vent Pipes Pipes extending through the roof Maintains airflow and releases gases.
Traps U-shaped pipes under fixtures Block sewer gases and allow drainage.
Common Issues with DWV Systems and Their Signs
Even a well-designed DWV system can encounter problems over time. Here are some common issues and the signs to watch for:
You may also read (master the art of one day house cleaning).
Clogs and Backups
Clogs are the most frequent problem in DWV systems. They can occur in the drain, waste, or vent pipes due to grease buildup, debris, or improper flushing. Signs of clogs include:
- Slow drainage
- Water backing up in sinks or tubs
- Gurgling sounds in pipes
Vent Pipe Blockages
When vent pipes are blocked—by debris, nests, or snow—they can’t release sewer gases or maintain air pressure. This can lead to:
- Foul odors in the home
- Gurgling noises from drains
- Slow or inconsistent drainage
Sewer Gas Leaks
If the traps in the DWV system dry out or fail, sewer gases can escape into your home. This is not only unpleasant but can also pose health risks.
Structural Damage
Persistent DWV problems, like leaks or sewer backups, can cause water damage to your home’s foundation, walls, and floors.
When to Call a Professional
If you notice any of these signs, it’s important to contact a licensed plumber. Attempting to fix DWV issues yourself can lead to further damage or violate plumbing codes.
Importance of Proper Installation and Maintenance of DWV
A properly installed and maintained DWV system is essential for your home’s safety and functionality. Here’s why:
Correct Slope and Venting
The slope of the pipes and the proper placement of vent pipes are crucial for efficient drainage. Improper installation can lead to clogs, backups, and even structural damage.
Plumbing Codes and Regulations
Professional plumbers follow strict plumbing codes to ensure the DWV system is safe and functional. For example, codes prevent double trapping, which can disrupt airflow and cause drainage problems.
Maintenance Tips for Homeowners
- Regularly flush your drains with hot water to prevent grease buildup.
- Avoid flushing anything other than toilet paper and human waste.
- Inspect roof vents periodically to ensure they are not blocked.
- Schedule annual plumbing inspections to catch potential issues early.
Benefits of Professional Installation
Hiring a professional ensures that your DWV system is installed properly, adheres to local plumbing codes, and functions efficiently. Regular inspections and maintenance can also extend the life of your plumbing system.
